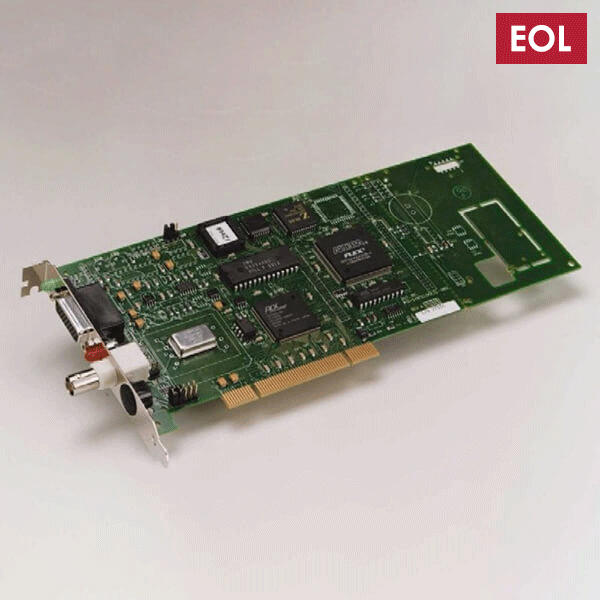

Features
- 3/4 length board (1/2 size available w/o GPS input)
- Optional Have Quick synchronization input
- IRIG’s A and B and NASA 36 time code inputs
- 1PPS sync input
- IRIG B output option
- 1PPS and time code inputs are redundant
- Single-slot including GPS option
- Zero latency time reads
- External Event input (optional eight or sixteen inputs)
- Match Time output
- Programmable Heartbeat rate
