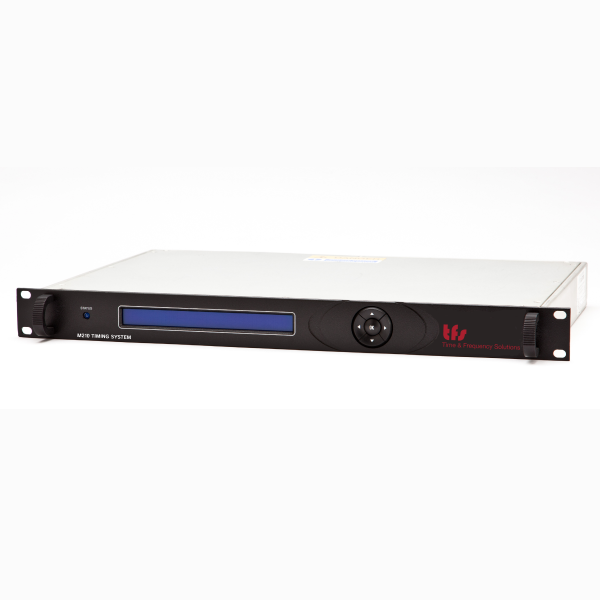

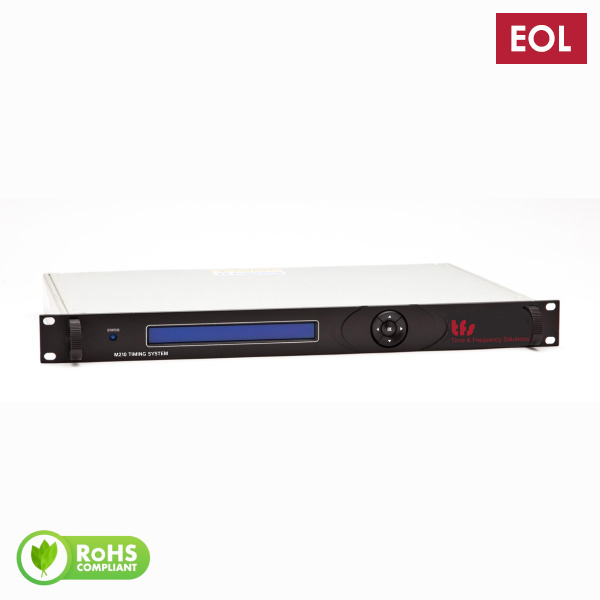

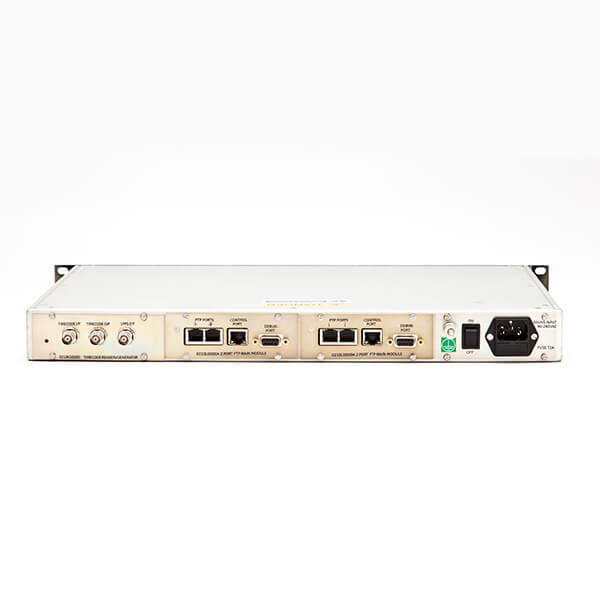

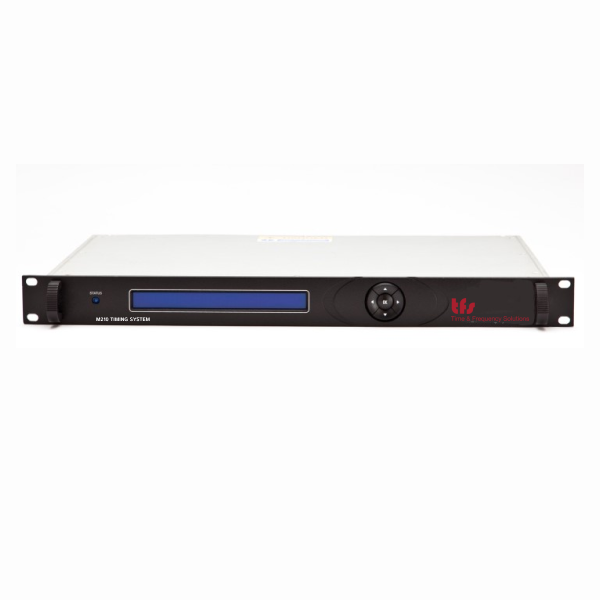

M210

• Module Expansion Slots: M210 – 3 Slots.
• Disciplined Oscillators: Choice of TCXO or OCXO
• Power Supplies: Single Universal AC mains as standard, 24V or 48V DC options available
• Time Sync Sources: GNSS, MSF, AM timecode (IRIG, 2137, XR3, AFNOR, IEEE1344) NTP, Serial Timecode, Havequick
• Module Output Formats: NTP, Serial Timecode, Pulse, 1/5/10/1.544/2.048MHz, Havequick, AM/DCLS timecode (IRIG, IEEE1344, 2137, XR3, AFNOR)
• Approvals: Qualified for use in ATC, Public Transport, Network Rail, Oil & Gas – CE, ISO9001, AS9100D
• Remote interfaces: HTTP / SNMP (with Ethernet Module)
• Warranty: 3 Years standard – Options for extended warranty and support contracts

Typical Applications

M210 & M211 are common place and thoroughly proven worldwide in safety critical applications such as Air Traffic Control, Rail & Road Networks, Oil & Gas installations and some military applications.

The units are built to AS9100D design and manufacturing standards and are factory configured on a per order basis.

The platform and many of the associated modules have been type approved for ATC & rail networks, backup by impressive MTBF performance figures.
